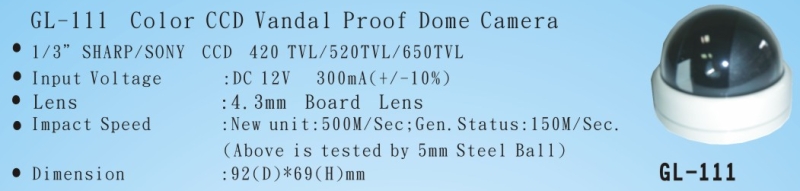

GL-111 Color CCD Vandal proof Dome Camera |
|
Image Device |
1/3" Sony & Sharp CCD sensor |
Effective Pixels |
NTSC: 512(H) x 492(V); |
Electronic Shutter |
N:1/60- 1/100,000sec(Auto); |
Horizontal |
520/420 TV Lines |
White-balance |
Auto white balance ( 2500°K~9500°K) |
Synchronizing System |
Internal |
Sensitivity |
0.2 Lux / F2.0 (1/3”) |
BLC |
Auto |
Signal to Noise |
More than 48dB (AGC off) |
AGC |
Yes |
Gamma Correction |
0.45 |
Lens |
4.3 mm Board Lens (6,8mm Option) |
Power Consumption |
120mA ± 5mA |
Power Supply |
12V DC ± 10% |
Temperature |
Operating: -10 to 50°C |
Video Output |
Composite 1.0 Vp-p at 75 ohm |
Construction |
Base : Aluminum |
Dimensions |
92 (Ø) x 69(H) mm |
Weight |
430 gram |
