Model |

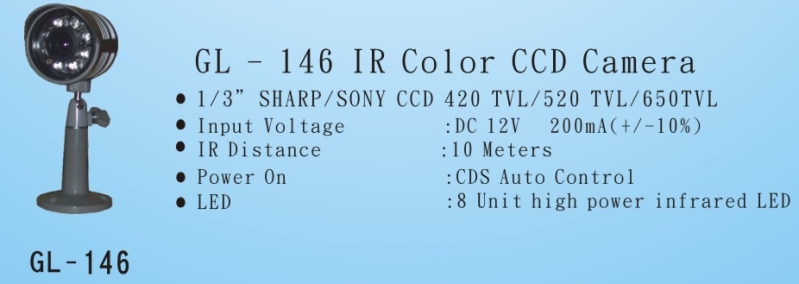

GL-146 Infrared Color CCD Camera |
|
Image Device |
1/3" Sony & Sharp CCD sensor |
|
Scanning Frequency |
NTSC: 15,734KHz(H),60Hz(V); PAL: 15,625KHz(H),50Hz(V) |
|
Scanning System |
NTSC: 525 line 2:1 interlace PAL:625 lines 2:1 interlace |
|
Effective Pixels |
NTSC: 512(H) x 492(V); PAL:512(H) x 582(V) |
|
Electronic Shutter |
N:1/60- 1/100,000sec (Auto); P:1/50-1/100,000sec (Auto) |
|
Horizontal |
520/420 TV Lines |
|
White-balance |
Auto white balance (2500°K~9500°K) |
|
Synchronizing System |
Internal |
|
Sensitivity |
0.2 Lux , 0 Lux at IR on / F2.0 |
|
BLC |
Auto |
|
Signal to Noise |
More than 48dB AGC off |
|
AGC |
Yes |
|
Gamma Correction |
0.45 |
|
IR Distance |
10 Meters (Based on: object of view reflected IR light) |
|
IR LED |
8 unit high power infrared LED |
|
IR Status |
Under 10 Lux by CDS auto control |
|
IR View Angle |
View angle: 70°, Beam spread: 40°/per LED |
|
IR Wavelength |
850nm ± 25nm |
|
LED Life |
More than 10,000 hours |
|
Lens |
6 mm Standard (4,8mm option) |
|
Power Consumption |
IR on: 230mA, IR off: 70mA ± 5mA |
|
Power Supply |
12V DC 400mA ± 10% |
|
Temperature |
Operating: -10 to 50°C |
|
Video Output |
Composite 1.0 Vp-p at 75 ohm |
|
Construction |
Aluminum with sunshield weatherproof |
|
Dimensions |
54(∮) x 83(L) mm |
|
Weight |
350 g |
